EMI Suppression Capacitors(X2)

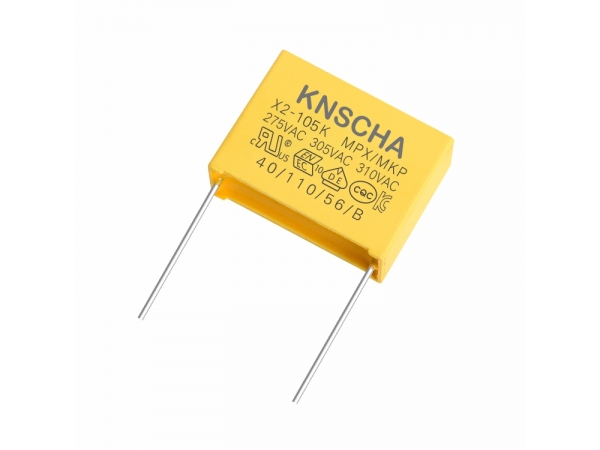

KNSCHA MPX/MKP X2 Capacitor
- Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.
- Used in across-the-line,interference suppression circuit
- Class X2 safety capacitors for 310VAC.
- Provides interference suppression capacitor with VDE, ENEC and UL approvals.
- Short delivery, some items have stock available.
- High quality commitment, good prices support.
- Cut leads, Bulk, Ammo Tape Package,Long leads are available.
- Fast sales response for cross, quotation.
-
| 310VAC Metallized Polypropylene Film Capacitor - X2 Specifications |
| Voltage Rating |
275VAC、305VAC、310 VAC |
| Capacitance Range |
0.001 – 4.7uF |
| Capacitance Tolerance |
±10% std. |
| Operating Temperature |
-40°C to 110°C |
| Testing Voltage |
4.3UR DC /5s |
| Dissipation Factor |
0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃)
0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃)
1.0μF≤CR≤10μF≤0.3% (1KHz,20℃) |
| Insulation Resistance |
CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S （20℃，100V,1min） |
-
-
