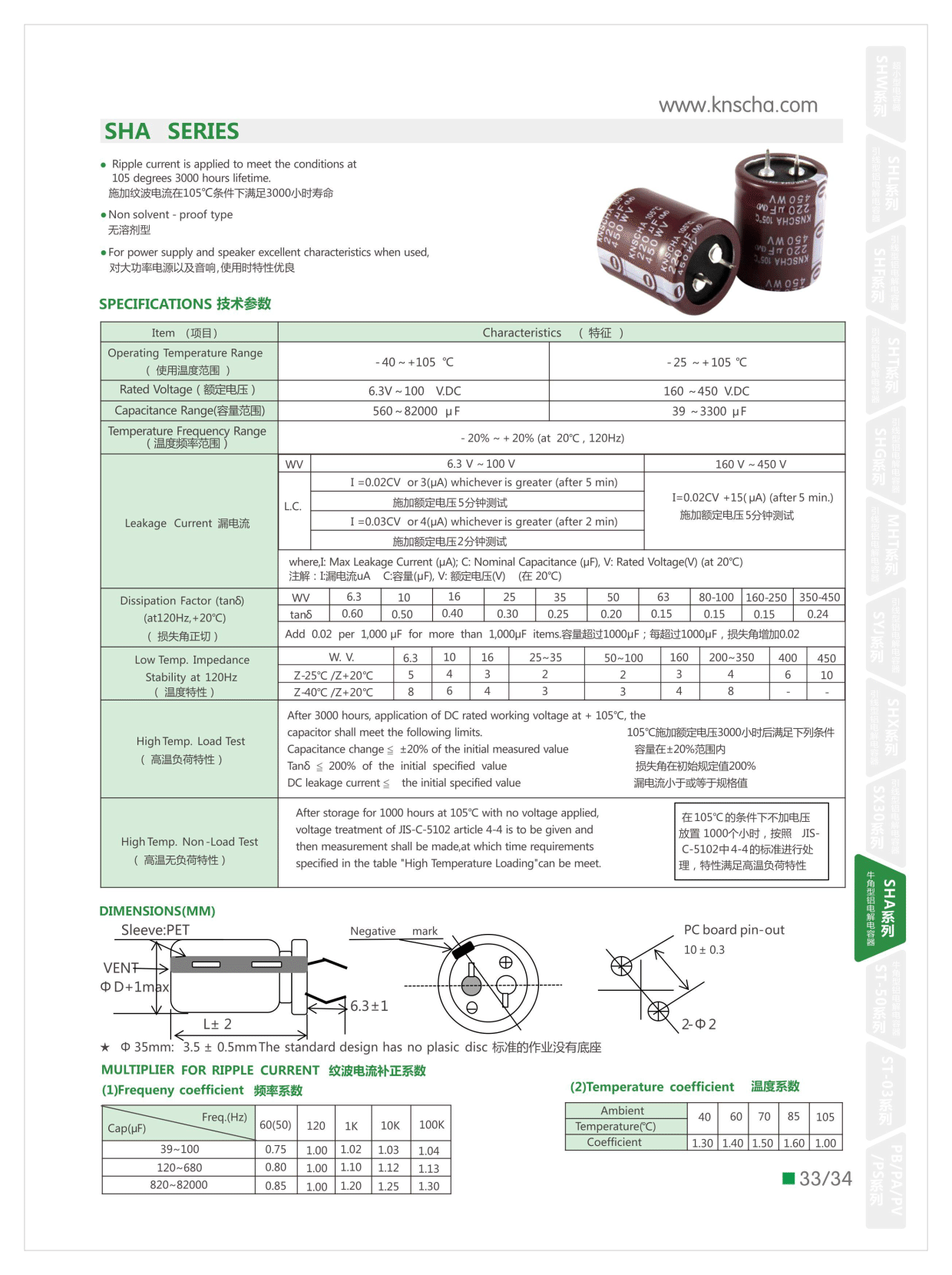

Operating Temperature Range：-40℃+105℃/-25℃+105℃
Rated Voltage：6.3~100V.DC/160~450V.DC
Capacitance Range：560uF~82000uF/39uF~3300uF
Temperature Frequency Range：-20%~+20%（at 20℃，120Hz）
Load life:3000H at 105℃
.gif)
Name:Type:Size:
SHAPDF2.40 MB
